FPC-LE-M1
FPC-LE-M1

 Compact Flexible LTE Antenna

  • Frequency: 698~915 & 1710~2170MHz

  • Gain(Peak):

    • -0.20 dBi @ 698~915MHz

    • 4.40 dBi @ 1710~2690MHz

  • Efficiency:

    • 42.64% @ 698~915MHz

    • 71.40% @ 1710~2170MHz

  • Impedance: 50Ω

  • Return Loss: < -8dB @ 698~915MHz & 1710~2170MHz

  • Polarization: Linear


Product Description

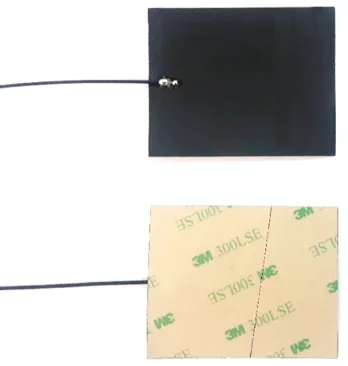

The FPC-LE-M1 is a flexible LTE antenna design, covering the US LTE frequency from 698~915 & 1710~2170MHz. This is a special LTE antenna design for the US major carriers, Verizon & AT&T, etc. The antenna is attached to the surface via 3M adhesive tape. If necessary, please feel free to contact us for the customized design or antenna fine-tuned service if the frequency is drift after the antenna is attached inside the product.



Highlight



  • High performance antenna element

  • Ground independent design

  • Cable middle entry design

  • Standard cable & connector are 1.37 with IPEX connector terminated.

Feature

  • Support 2G /3G /4G cellular frequency

  • Designed for the US LTE bands
