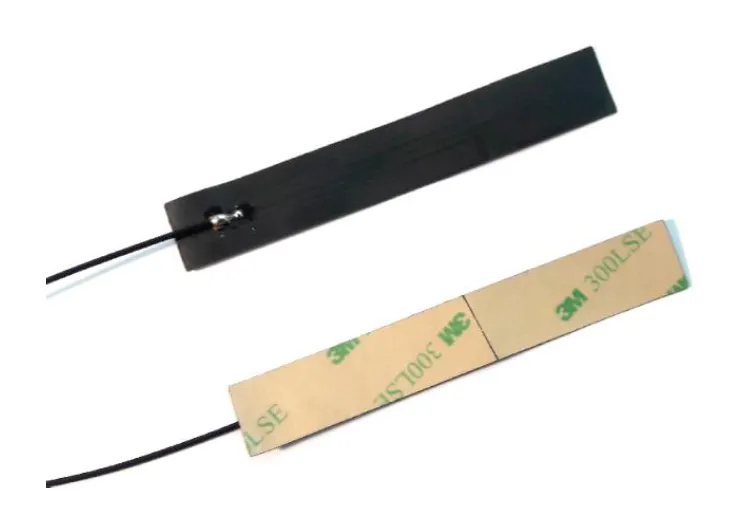

FPC-LE-S1
Compact Flexible LTE Antenna
-
Frequency: 698-960MHz & 1710-2690MHz
-
Dimension: 95(L) x 15(W) mm
-
Connector: i-Pex
-
Cable: OD-137 (Standard)
-
Gain:
1.26 dBi @ 698~960MHz
4.87 dBi @ 1710~2690MHz -
Mounting: Double-side adhesive
-
RoHS: Compliant
-
Material: FPC
Product Description
The FPC-LE-S1 is a compact and flexible LTE design antenna, covering the worldwide LTE frequency from 698~960 & 1710~2690MHz. This is a compact LTE antenna design without compromise the antenna performance. The antenna is attached to the surface via 3M adhesive tape. If necessary, please feel free to contact us for the customized design or antenna fine-tuned service if the frequency is drift after the antenna is attached inside the product.
Highlight
-
Compact design combined with high performance antenna element.
-
Ground independent design.
-
Cable side entry design.
-
Standard cable & connector are 1.37 with IPEX connector terminated.
