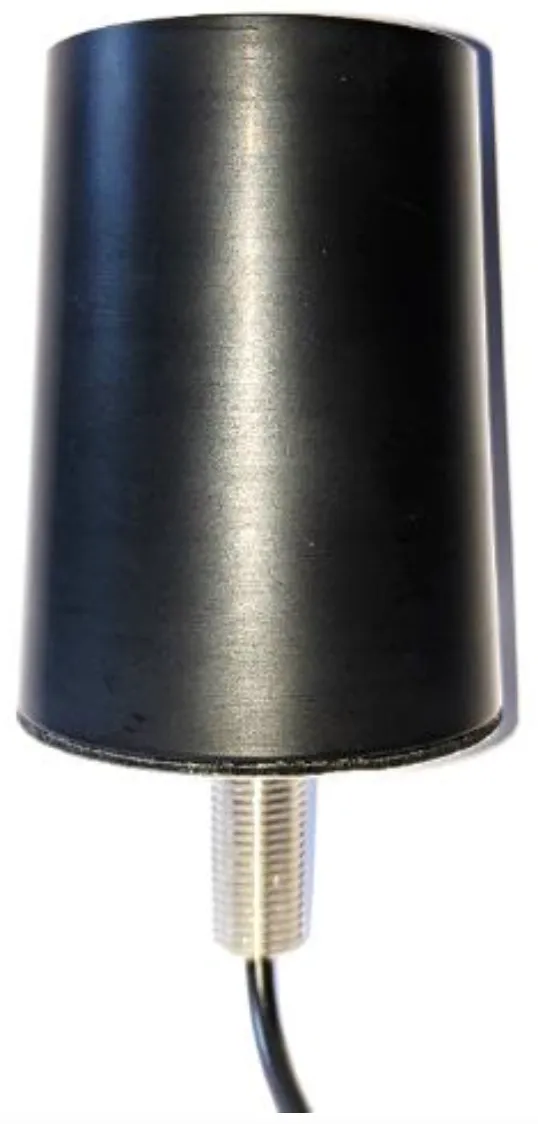

LE-Q6C
Compact & Rugged High Performance
Wide-band LTE Antenna
-
Frequency: 698-960MHz & 1710-2170MHz
-
Dimension: 48mm(dia.) x 64mm
-
Connector: SMA Plug (other connectors available)
-
Gain:
-
1.32 dBi @ 698~960MHz
-
3.86 dBi @ 1710~2700MHz
-
-
Efficiency:
-
70.24% @ 698~960MHz
-
66.61% @ 1710~2700MHz
-
Product Description
The LE-Q6C is a compact, rugged and low profile industrial-grade antenna with the coverage of 2G/ 3G/ 4G bands. It’s mounted to the surface by a 3M tape attached at the antenna bottom. A ground is required to have the best RF performance. Customized spec is available.
Highlight
-
Compact design combined with high performance antenna element.
-
Low profile design, only. 64MM antenna height.
-
Cable direct entry through a cable terminated by a RF connector is optional.
-
Ground plane is mandatory.
