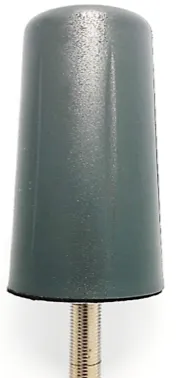

LE-Q7C
Compact & Rugged High Performance
Wide-band LTE Antenna
-
Frequency: 698-960MHz & 1710-2170MHz
-
Dimension: 48mm(dia.) x 82mm
-
Connector: SMA Plug (other connectors available)
-
Gain:
-
2.71 dBi @ 698~960MHz
-
3.28 dBi @ 1710~2170MHz
-
-
Efficiency:
-
82.31% @ 698~960MHz
-
63.06% @ 1710~2170MHz
-
Product Description
The LE-Q7C is a compact and rugged industrial-grade antenna with the coverage of 2G/ 3G/ 4G bands. It’s mounted to the surface by a 3M tape attached at the antenna bottom. The highest antenna efficiency could reach 82.31% at low band and 63.06% at high band, so it’s ideally to be used in the areas where the signal is poor. Please also contact us for the customized if required.
Highlight
-
Compact design combined with high performance antenna element
-
Separated RF adapter and cable design for installation flexibility.
-
Cable direct entry through a cable terminated by a RF connector is optional.
-
Customized color for the housing or post length to fit the installation is available.
