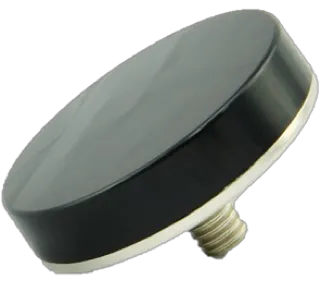

T6-GL-C
Industrial-Grade GNSS & LTE MIMO Combination Antenna
-
Frequency:
-
LTE MIMO: 698~960 & 1710~2170MHz
-
GPS L1: 1575.42 ± 1.023MHz
-
GLONASS L1: 1602 + 0.5625 * K (MHz)
-
-
Dimension: 68.2(dia.) x 36mm
-
Connector: SMA Plug (other RF connectors available)
-
Enclosure: ASA (Acrylonitrile Styrene Acrylate)
-
Gain:
-
698~960MHz: 0.7dBi
-
1710~2170MHz: 5.5dBi
-
GPS/GLONASS: 28 ± 2dB
-
-
Mounting: Screw Mount
-
IP67
Product Description
The T6-GL-C is a rugged combination antenna of GNSS and telecom LTE bands, which features excellent GPS Glonass signal quality and cellular 2G/3G/4G coverage. With anti-UV material and water ingress design, the combo antenna is easy to install and able to meet commercial and industrial standards.
Highlight
-
Central screw mount, easy installation.
-
IPX7 fully waterproof
-
Support GPS/GLONASS & 2G/3G/4G cellular frequency
-
RF independent ground
-
Application flexibility 1-cable, 2-cable and 3-cable are available
